2012 01 07 Hevelius, Lohrmann, Cavalerius

2012 01 07, 0200UT – 0340UT Hevelius, Lohrmann, Cavalerius
PCW Memorial Observatory, OH, USA, Erika Rix
Hevelius: Walled plain with steep slopes and a small central mountain, from Nectarian geological period (-3.92 billions of years to –3.85 billions of years)
Lat: 2.2 deg N, Long: 47.4 deg W

16” Zhumell f/4.5 on a non-tracking Dobsonian mount, 24-8mm Baader Planetarium Mark III Hyperion, 225x, Moon filter
Temp6.5 C, 58% humidity, S: Antoniadi I-II, T: 4/6

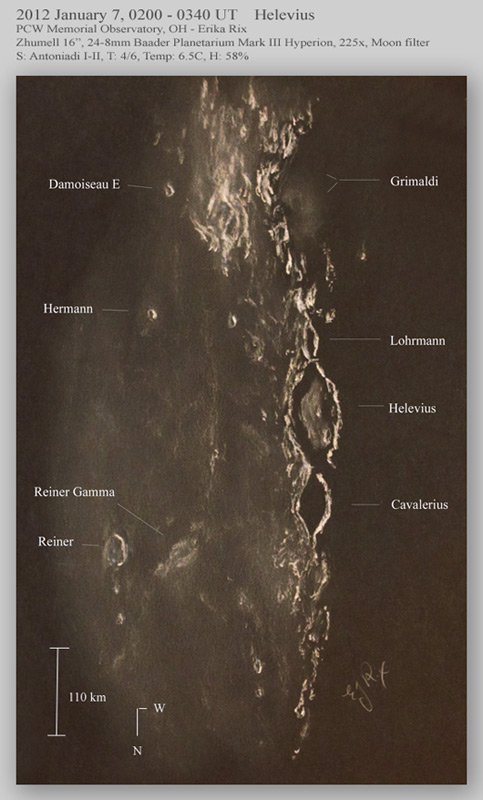

Eyepiece sketch black Strathmore Artagain paper, Conte crayon and pastel pencil, charcoal pencil
Phase: 25.8 deg, Lunation: 13.35 d, Illumination: 95.0%
Lib. Lat: +01:33, Lib. Long: -04:22
Az: +206:07, Alt: +30:18

The trio of Hevelius, Lohrmann, and Cavalerius were the first to catch my eye along the terminator tonight. After a quick tour near the terminator, I settled on the trio and their surrounding area for a closer study. Grimaldi’s western rim was etched south of Lohrmann and had begun to fill with sunlight creeping over the waxing edge. The small central mountain of Hevelius and crater Hevelius A were spotted easily and the only hint of Hevelius rimae was a softened dark line reaching north to south just east of the central mountain. I didn’t realize it was even there until I came inside after my session and compared my sketch with an atlas of the area. The tormented outer slopes of the crater chain were very clear and sharp, making them very enjoyable to study and even more so to draw (in my feeble attempt to capture all the detail as accurately as I could). Cavalerius was completely filled in with shadow.

The fantastic find of the night was the Hevelius D 1 (dome) along the wrinkle ridge between Reiner and Hevelius. Reiner and Reiner Gamma were added as the sketch progressed as they were too tempting to leave out.

Lunar Orbiter Photographic Atlas

Photo Credit: Lunar Orbiter

About these ads

~ by Erika Rix on January 7, 2012.

2 Responses to “2012 01 07 Hevelius, Lohrmann, Cavalerius”

  1. Wonderful sketch Erika, I was out at nearly the same time attempting a sketch, but wow , yours blows mine away.

  2. Thank you, Andy. I’ve seen your sketch and it’s very accurately done and an excellent rendering. You should be really pleased with it!
